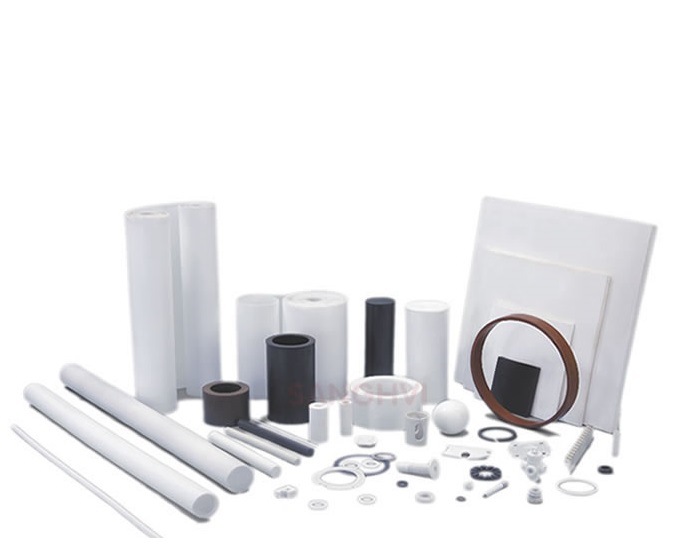

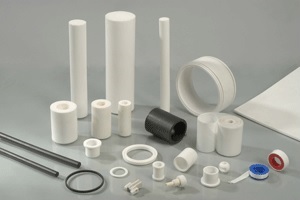

TISTAM® provide different varieties of P.T.F.E from raw materials as to meet your specific needs in all sizes and types, in addition to P.T.F.E products made from best raw material to precisely determined such as P.T.F.E Sheet, P.T.F.E Rod, P.T.F.E Tube, P.T.F.E Tape, P.T.F.E Gasket, P.T.F.E Coated Fabric, P.T.F.E Diaphragms, P.T.F.E Bearing slide, P.T.F.E Packing and P.T.F.E O-rings.
P.T.F.E general properties:
P.T.F.E (C2 F4)n, goes this material superior than all other plastics, recommending its uses in many different applications precluded to other materials, the most outstanding of these characteristics are:
- Extremely high chemical inertness.
- Extremely heat and cool resistance.
- Extremely dielectric properties.
- No hygroscopic and high solvents resistance.
- Excellent ageing resistance.
- Good sled-lubrication and anti-stick properties.
.jpg)
Chemical characteristics:
P.T.F.E. possesses a high inertness towards all known chemicals, and is insoluble in all solvents up to temperatures as high as 250°C depend on filler type.
Mechanical properties:
Generally speaking, P.T.F.E. is a flexible material, endowed with fair tensile strength and high elongation at break.
The outstanding characteristics of P.T.F.E., among all polymeric materials, is represented by the wide temperature range (+200°C -200°C) over which its mechanical properties remain unaltered.
Electrical properties:
P.T.F.E. possesses exceptional and constant electrical properties during temperatures range from 100°C up to 300°C and at frequencies up to 10 cycles.
Resistance to ageing and weathering:
P.T.F.E. has high chemical stability, stands up well to aging effects, in long term aging tests, the sample exposed to different weathering conditions for years showed no weight loss.
Thermal properties:
P.T.F.E. is to be considered a thermal insulate having a low thermal transmission coefficient.
PHYSICAL and optical characteristics:
Parts fabricated with P.T.F.E. are opaque, white, black and bronze.

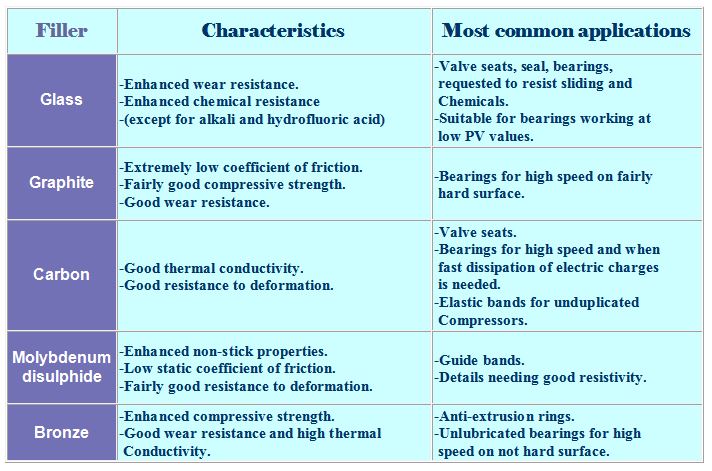

PROPERTIES OF FILLED P.T.F.E, to modify P.T.F.E characteristics is necessary to fill the powder with:
Glass fiber – carbon – graphite molybdenum –bronze metal oxides –ceramics- etc.
