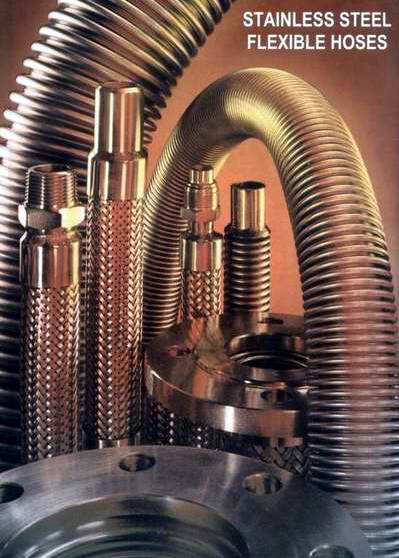

FLEXIBLE HOSES ST. EXPANSION JOINT

MATERIALS

St.St. AISI 321 ( standard weight, code, n. SP.T.9700.27) – AISI 316 L on application other qualities of st.st.

COVERINGS

SP.T.9700 tube without cover ( n. braid 0)
SP.T.9750 covered with one braid in st.st. AISI 304. Braid in AISI 321 can be supplied
SP.T.9755 covered with two braids in st.st. AISI 304. on application
SP.T.9740 covered with one braid in galvanized steel.
SP.T.9756 covered with one braid in st.st. AISI 304 and further braid (or strip) in asbestos.

On request
-Protection with a further SP hose of larger diameter (DOUBLE CONDUIT)

TEMPERATURE

AISI 321 : -269° C ÷ 800° C
AISI 321 L : -269
° C ÷ 800° C

FEATURES

The good flexibility and the high pressure capability of the type SP.T.9750, together with
its good capacity to absorb vibrations, offer the user an economical and long-lasting
solution to overcome those problems deriving from a dynamic offset or from cyclic motion.

FITTINGS

Of any type in carbon steel, malleable cast iron, brass, bronze, stainless steel, or
combination of stainless steel and carbon steel. Attachments can be made by electro-
welding (type EL), brazing (type BA and Bf), reusable fittings, etc.

USE

Wherever very severe ambient conditions are combined with chemical aggressively, high
temperature pressure or vacuum, frequent movement, static or dynamic offset, vibration,
permeability (rare gasses), etc.

MILL LENGTHS

depending on diameters. Indefinite lengths (obtained by argon-arc-Welding) can be supplied on application.

ND inch ID mm N. of braids OD mm

Pressure

kg/cm2

Intermittent

Flexing

Permanent bend mm

Code

3/8 10.60 0 16.10 5 125 35 SP.T.9700
1 17.50 75 190 35 SP.T.9750
2 19.00 105 205 35 SP.T.9755
1/2 12.90 0 19.30 5 140 35 SP.T.9700
1 20.80 70 210 35 SP.T.9750
2 22.30 100 225 35 SP.T.9755
5/8 15.70 0 23.70 4 190 45 SP.T.9700
1 25.20 65 285 45 SP.T.9750
2 26.70 90 305 45 SP.T.9755
3/4 19.80 0 27.80 3 215 55 SP.T.9700
1 30.30 50 310 55 SP.T.9750
2 31.80 75 330 55 SP.T.9755
1 26.50 0 36.50 3 250 70 SP.T.9700
1 38.00 40 375 70 SP.T.9750
2 39.50 60 385 70 SP.T.9755
1.25 33.00 0 43.70 3 270 80 SP.T.9700
1 45.70 35 405 80 SP.T.9750
2 47.70 50 415 80 SP.T.9755
1.50 40.00 0 52.00 2 320 100 SP.T.9700
1 54.30 30 480 100 SP.T.9750
2 56.30 40 490 100 SP.T.9755
2.00 51.60 0 65.50 1 360 130 SP.T.9700
1 67.50 25 550 130 SP.T.9750
2 69.50 32 570 130 SP.T.9755
2.50 66.00 0 85.40 1 450 175 SP.T.9700
1 87.90 20 675 175 SP.T.9750
2 90.40 25 685 175 SP.T.9755
3.00 76.60 0 97.50 1 500 200 SP.T.9700
1 100.00 18 750 200 SP.T.9750
2 102.50 22 770 200 SP.T.9755
4.00 103.00 0 125.00 1 600 250 SP.T.9700
1 128.00 14 920 250 SP.T.9750
2 130.50 20 960 250 SP.T.9755
5.00 127.50 0 151.50 1 750 325 SP.T.9700
1 154.50 12.5 1160 325 SP.T.9750
2 157.50 18 1200 325 SP.T.9755
6.00 151.50 0 177.00 0.80 850 375 SP.T.9700
1 180.00 10 1320 375 SP.T.9750
2 183.001 15 1400 375 SP.T.9755
