ANTI CREEPING SEAL


AC – SEAL Floating Seal Device

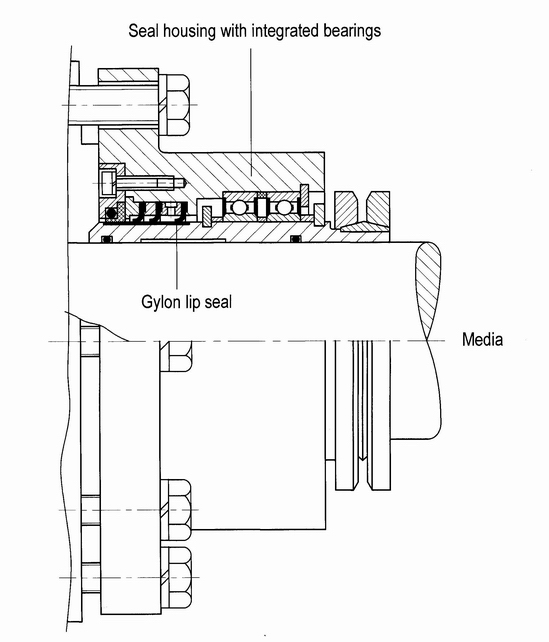

       The AC – SEAL Floating Seal Device is a customized solute- on for rotating shafts with excessive radial movement.

The principle ensures that the sealing assembly follows any shaft movement.

This is achieved by the flexible connector installed between the shaft seal and the equipment.

AC – SEAL floating Seal Devices have success- fully sealed mixers, agitators and other equipment with shaft deflection greater than seals can absorbed

For engineering assistance please contact TISTAM to obtain an application data sheet

Typical applications

- Dryers

- Mixer

- Agitators

AC – SEAL Technical Information

Materials

If no special lip material is required TISTAM supplies all AC – SEAL in standard materials.



Temperature

The temperature range for AC – SEAL is from – 90°C up to 250°C. for temperatures above 200 °C contact Garlock.



Sealing lip

CREEPING – B    Standard material

CREEPING – W   Special material for pharmaceutical and food applications, conforms to FDA regulations.

CREEPING – F    Special material with good dry- running characteristics and suitable for soft counter– running                                           surfaces



Case material

AC – SEAL Standard   Standard material: Standard steel 1.4571 (AISI 316 TI)

AC – SEAL Special      Standard material: Standard steel 1.4571 (AISI 316 TI)



Static sealing element

Fluoroelastomer Standard material

CREEPING Special material for application where improved chemical resistance is required.



Shaft hardness

-          up to 1.5 bar min. 45 HRC

-          above 1.5 bar min. 60 HRC

we recommend to use a plasma coated chrome oxide surface, plunge grinded and PTFE sealed.



Pressure/Vacuum

-          AC – SEAL Standard     max. 10 bar

-          AC – SEAL Lip               max. 25 bar

-          AC – SEAL Special        max. 25 bar

The AC – SEAL is also recommended in applications with vacuum.

Application limitation

The limitation for temperature, pressure and shaft speed, which are given in this catalogue cannot occur simultaneously

Installation instructions

The lip of AC – SEAL has to be mounted with care.

Prevention of damage is ensured by preparing the shaft as outlined at fig. 1. If the AC – SEAL is assembled in the

Reversed manner it is recommended that a fitting cone is used as shown in fig. 2- The surface of the cone and of the shaft should be polished and free from scoring.
