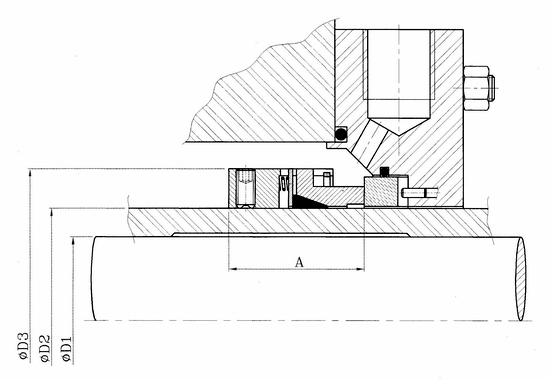

Type 570 U



Unbalanced multi spring mechanical seal with teflon wedge packing

-Tang & groove drive

- Wedge Teflon as rimery seal

- For heavy duty applications

- Operating condition

Pressure       : UP TO 15 bar

Temperature: UP TO 280°

Speed            : UP TO 300RPM

Avilable Materials

1- Rotary seal face :Silicon carbide, Tungsten carbide, Carbon graphite or Stellite.
2- Mating ring CS, PB, DA extra  :Silicon carbide, Tungsten carbide, Carbon graphite or Stellite.
3- Retainer :316 – 316L – HASTE ALLOY C, monel
4- Springs :HASTE ALLOY C
5- Rotary seal ring packing :Teflon wedge.
6- Seat ring packing :Teflon or O-Ring.
7- Sleeve packing :Teflon or O-Ring.
